3/4" Inside Diameter Rubber Grommet - 1/16" Groove Width - Fits 1-1/4" Holes

Product Overview:

3/4" Inside Diameter Rubber Grommet - 1/16" Groove Width - Fits 1-1/4" Holes. Ideal for passing wires through panels without risking damage or abrasion by acting as a protective barrier, extending the lifespan of your cables and wires.

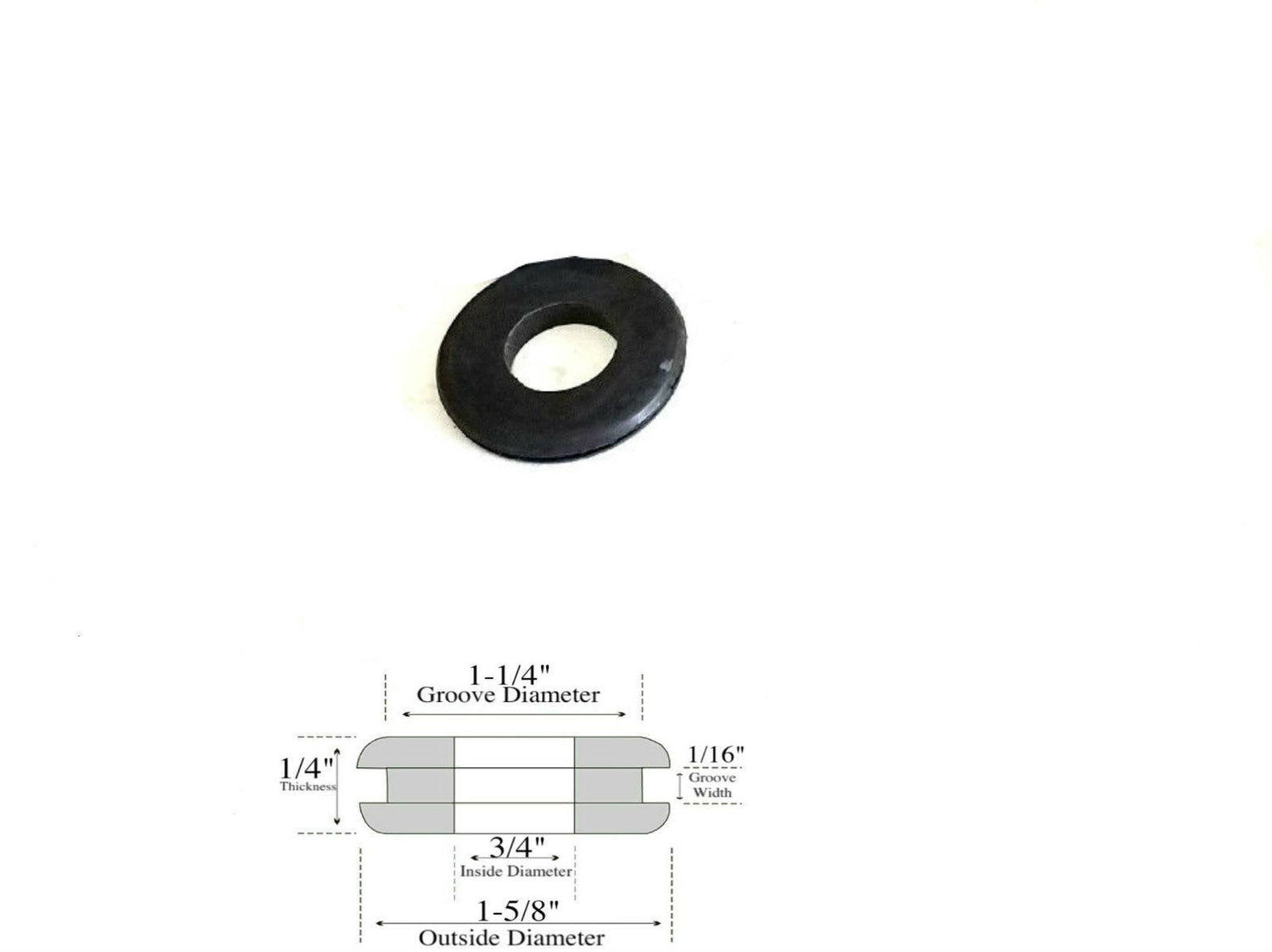

Product Specifications:

• Inside Diameter: 3/4"
• Groove Width: 1/16"
• Groove Diameter: 1-1/4"
• Outside Diameter: 1-5/8"
• Thickness: 1/4"



Rubber Grommet Uses:

Rubber Grommets are used as insulation for cables, wires, and electrical varieties by preventing chafing. Rubber Grommets plays a critical role in industrial, automotive and electrical environments. They're are also great for DIY projects, Woodworking, and plumbing applications to name a few.. Durometer hardness - 60 Can be used indoors or outdoors.




How to Install a Rubber Grommet:

• Measure and Cut the Hole: Accurately measure the diameter of the wire or cable and cut a hole slightly smaller in the panel or surface where the grommet will be placed.
• Prepare the Grommet: Ensure the rubber grommet is clean and free from any debris. If necessary, lightly lubricate with a silicone-based product for easier installation.
• Insert the Grommet: Gently press the grommet into the hole, starting from one side and working your way around. It should fit snugly without excessive force.
• Thread the Cable or Wire: Once the grommet is securely in place, thread the cable or wire through it. The grommet should provide a protective, snug fit around the cable.
• Final Check: Ensure the grommet is seated properly and provides a tight seal. Adjust if necessary to avoid any movement or chafing of the wires.
